i-ED COIL SYSTEMS
Reshaping coil embolization.
i-ED Coil System
We agree that shape matters. That’s why we offer a full line of complex-shaped coils for round and elliptical aneurysms. But what about when the shape is irregular?
Then, in our opinion, shapeless matters.
Our low-memory shape coils seek out the open space without compartmentalizing into a ball-like shape. Plus, with diameters of 0.012in and 0.014in, and up to 50cm in length, 14-Infini and Complex-Infini offers up to 2x more volume than a 0.010in coil.
i-ED Coil portfolio.

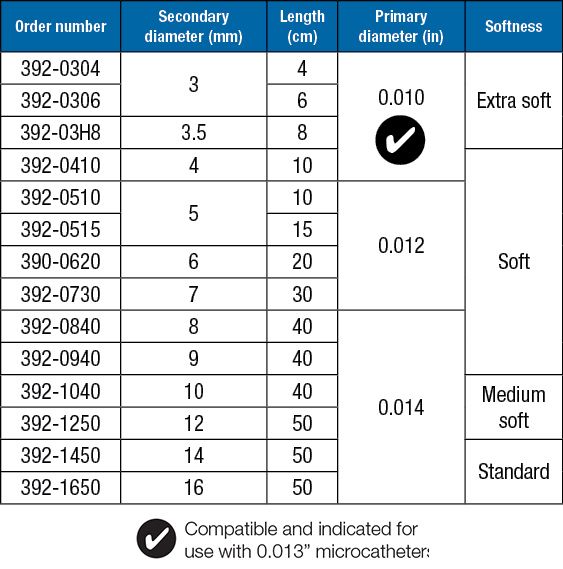

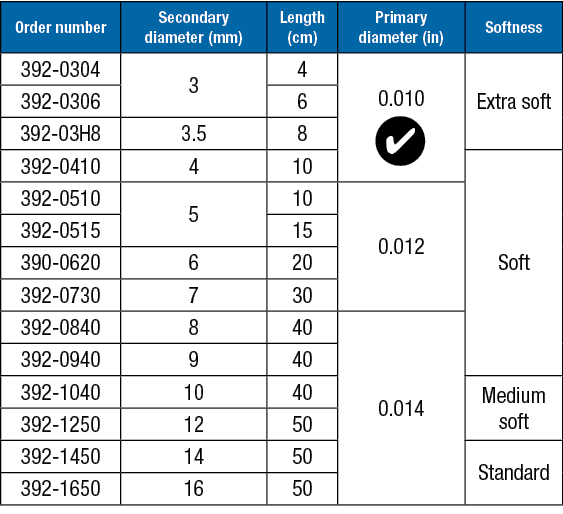

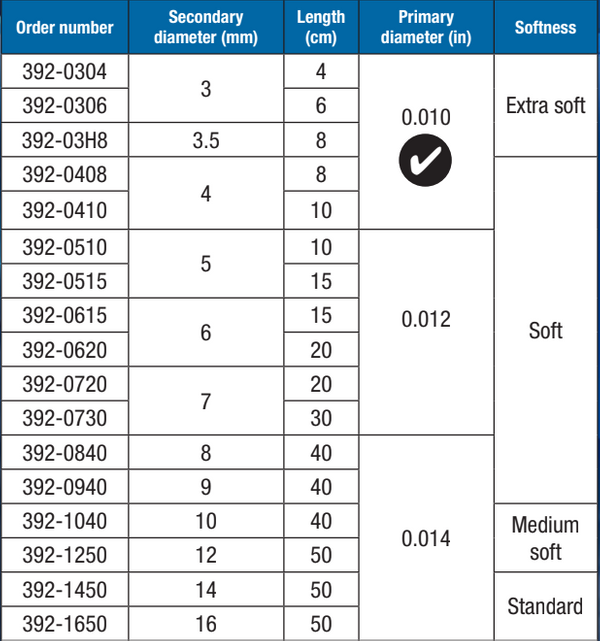

Complex Coil
High memory shape
The Complex coil is our highest memory shape coil, taking on a ball-shaped coil upon deployment (similar to any other traditional concentric frame, fill and finish coil).
Progressively more volume
The coil primary diameter increases progressively with the size of the implant: 0.010in for 1-4mm coils, 0.012in for 5-9mm coils and 0.014in for 10-16mm coils.

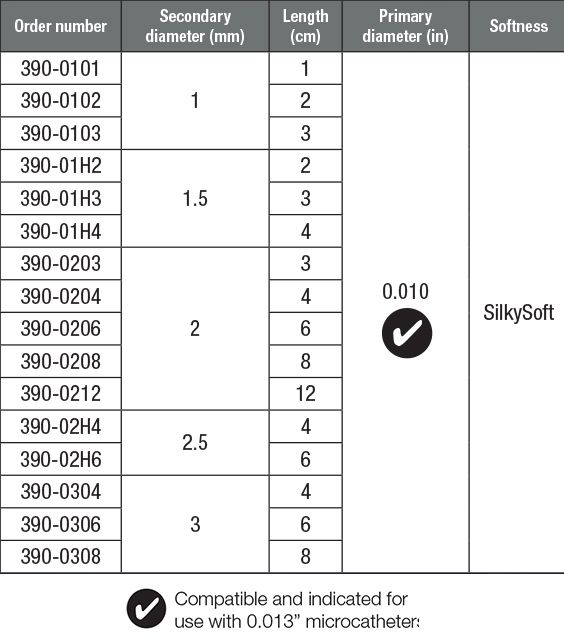

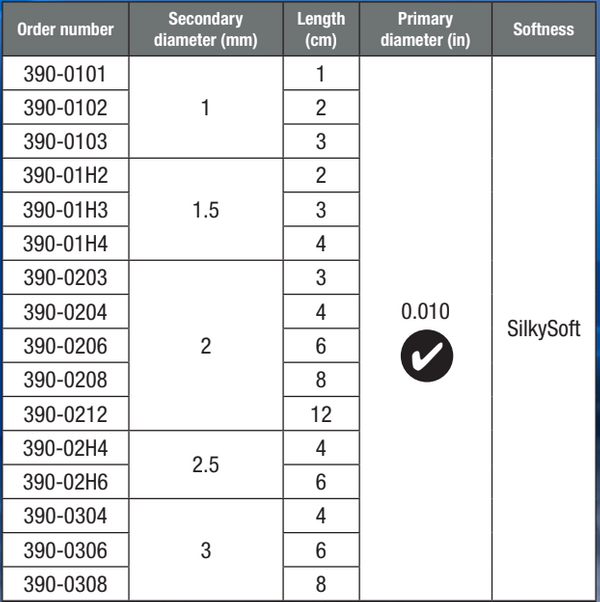

Available in SilkySoft profile
The low-profile pusher wire on the Complex SilkySoft finishing coil enables the coil to fit through a 0.013in microcatheter.

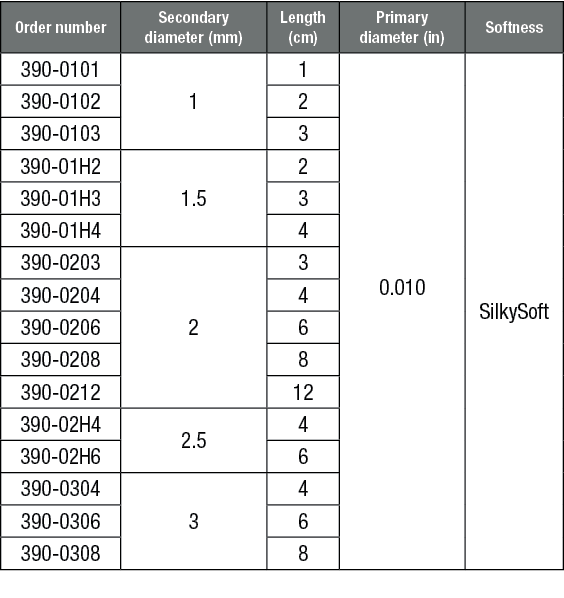

Complex-Silky Soft
Low memory shape
0.010in primary diameter
Our softest finishing coil that fits through a 0.013” microcatheter

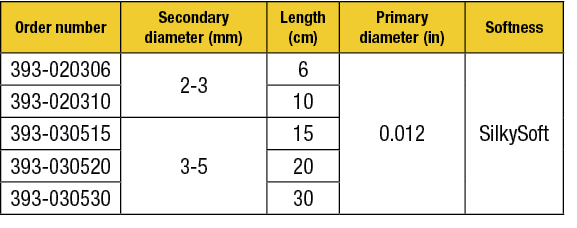

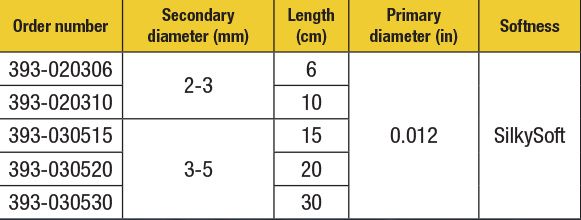

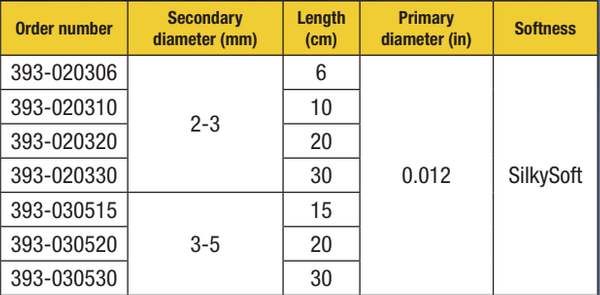

Complex-Infini Coil
Moderate memory shape
Hybrid shape (between a Complex and Infini coil) means a moderate amount of shape-memory. With every other loop alternating between the low-memory Infini and high-memory Complex, this filling coil seeks out the open space left by framing coils.
0.012in primary diameter
0.012in primary diameter means up to 1.5x more volume that a 0.010in coil.
Available in SilkySoft profile
Available in the SilkySoft profile, this coil is 3x softer* than Target 360 Ultra.

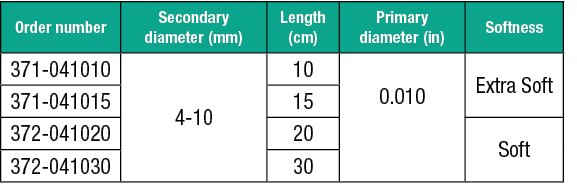

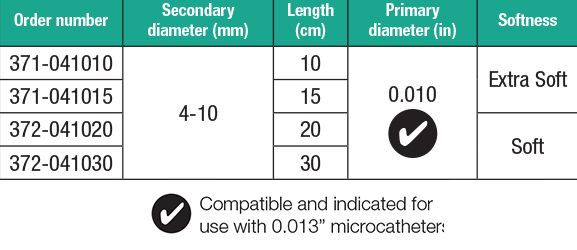

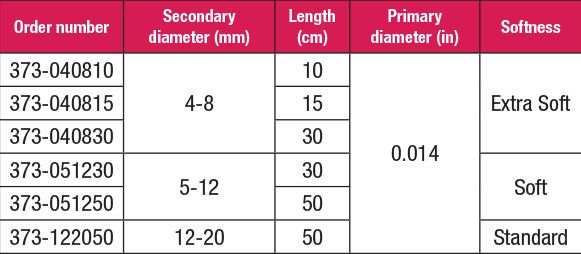

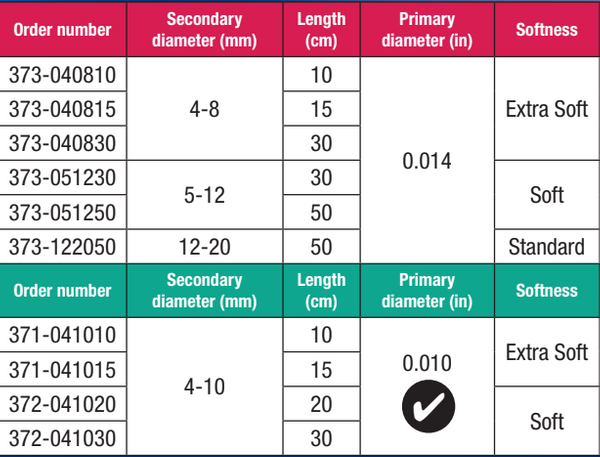

Infini Coil
Low-memory shape
Low memory-shape coil easily changes direction when it encounters resistance to scaffold over a stent or conforms to irregular shapes

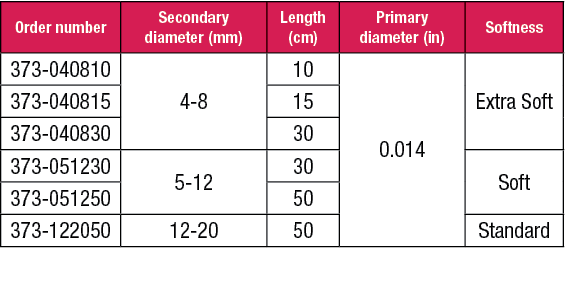

0.010 and 0.014in primary diameters
The 14-Infini provides up to 2x more volume per coil with up to 50cm lengths.
Select coil based on length
The selection process for Infini coils differs from that of Complex coils. Instead of focusing on the coil's secondary diameter, selection is based on the length to achieve the desired packing volume. This is because the low memory-shape of Infini coils means the coil can fit a range of diameters, as is noted on the product label.
*Target is a registered trademark of Stryker Corporation. Comparative data on file. Softness defined using K factor calculations.
Case examples
Videos coming soon!
Indications for use.
The i-ED COIL System (i-ED COIL and EDG v4) is intended for the endovascular embolization of intracranial aneurysms and other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.
The i-ED COIL System is also intended for vascular occlusion of blood vessels within the neurovascular system to permanently obstruct blood flow to an aneurysm or other vascular malformation and for arterial and venous embolizations in the peripheral vasculature.
Do more. With less.
Although our mission is to expand treatment options for neurovascular embolization, at our core, we focus on sustainability. That's why we’ve developed a simple portfolio of coils. Using memory-shape technology, Kaneka is able to offer a small, yet versatile, portfolio of coils that allows you to do more, with less.
